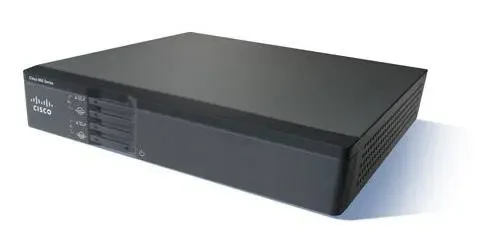

Маршрутизатор Cisco C866VAE-K9

Name: Маршрутизатор Cisco C866VAE-K9
Brand: Cisco
SKU: C866VAE-K9

Производитель: Cisco

Артикул: C866VAE-K9

Срок поставки: по запросу

Цена по запросу

Уточните условия поставки у менеджера.

Описание

Cisco 866VAE Secure router with VDSL2/ADSL2+ over ISDN

Model	Cisco 866VAE-K9
WAN Interfaces	1 GE ADSL2+ basic telephone service/ISDN VDSL2 over ISDN
LAN Interfaces	1 GE + 4-port 10-/100-Mbps managed switch
Performance with services	10 Mbps
Increased performance	Performance that allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, and video services
Security and quality of service (QoS) with secure routers	IPsec and Easy VPN with 10 tunnels BGP MAC filtering and port security QoS features that include LLQ and WFQ NBAR and DiffServ
State-of-the-art xDSL	State-of-the-art xDSL features as per the latest ADSL2+/VDSL2 standards Improved interoperability vs. various DSL access multiplexers (DSLAMs) deployed at worldwide service providers
Managed switch with GE and FE LAN ports	Connection of multiple devices within a teleworker home or a small office, with the ability to designate a port as the network edge VLANs that allow for secure segmentation of network resources
Wireless LAN	802.11n 2.4 GHz FCC- or ETSI-compliant WiFi Cisco IOS® Software command-line interface (CLI) or web-based configuration with Admin/Guest role-based access.
CON/AUX port	A single dual-purpose port that provides direct connection to a console or external modem for management or backup access point
Real-time clock	A built-in real-time clock that maintains an accurate date and time for applications that require an accurate time stamp, such as logging and digital certificates
Security features	Ten IPsec tunnels Easy VPN/IPsec VPN FlexVPN including Site-Site VPN on 860VAE-W and C860VAE* models Firewall Cloud Web Security (Scansafe) Connector
Routing and switching	Border Gateway Protocol (BGP) MAC Filtering Port Security IPv4 VRF-Lite (Support for 4 VRFs)
QoS features	LLQ, WFQ Class-Based WFQ (CBWFQ) Policy-Based Routing (PBR) Class-Based QoS MIB Class of service (CoS)-to-differentiated services code point (DSCP) mapping Network-Based Application Recognition (NBAR) DiffServ
Embedded management features	NetFlow IP service-level agreement (IP SLA) Web Services Management Agent
DRAM	512MB
Flash memory	56 MB
Console or auxiliary port	RJ-45
USB	One USB 2.0 USB port can be used for: USB flash memory 128 MB (MEMUSB-128FT), 256 MB (MEMUSB-256FT), and 1 GB (MEMUSB 1024FT) Cisco IOS Software boot from USB Note: USB 2.0 port cannot be used for connecting external devices or as a console
Physical dimensions (H x W x D)	4.45 x 24.1 x 22.9 cm
Form-factor	1 RU
Weight	2.5 kg
Power	AC input voltage: 100 to 240 VAC Frequency: 50 to 60 Hz Maximum output power: 60W Output voltages: 12 VDC
Nonoperating temperature	-20 to 65°C
Nonoperating humidity	5 to 95% relative humidity (noncondensing)
Nonoperating altitude	0 to 15,000 ft (0 to 4570m)
Operating temperature	At sea level: 0 to 40°C Up 10,000 ft: 0 to 25°C Derating 2.7°F/10,000 ft (1.5°C/1000 ft)
Operating humidity	10 to 85% relative humidity (noncondensing)
Operating altitude	0 to 10,000 ft (0 to 3000m)
Cisco IOS Software Image	C860vae2-advseck9-mz
Default Feature Set	Advanced Security
First Cisco IOS Software Release	15.6(3)M
Approvals and compliance	Emissions: 47 CFR Part 15: 2006 CISPR22: 2005 EN300386: V1.3.3: 2005 EN55022: 2006 EN61000-3-2: 2000 [Inc amd 1 and 2] EN61000-3-3: 1995 [+ amd 1: 2001] ICES-003 Issue 4: 2004 KN 22: 2005 VCCI: V-3/2006.04 Immunity: CISPR24: 1997 [+ amd 1 and 2] EN55024: 1998 [+ amd 1 and 2] EN61000: 4-3, 4-6 AS/NZS 3548 CFR 47 Part 15 Class B EN55022 Class B
Multimode DSL (VDSL2 and ADSL2 and 2+)	Broadcom chipset Dying gasp (Note: Dying Gasp is not assured on Annex M) IEEE 802.1q VLAN tagging VDSL2: ITU G.993.2 (VDSL2) 997 and 998 band plans VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a U0 band support (25–276 kHz) Ethernet PTM mode only based on IEEE 802.3ah 64/65 octet encapsulation DELT diagnostics mode ADSL2/2+: ADSL over basic telephone service with Annex A and ISDN Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+) ADSL2+ over basic telephone service Annex M (for extended upstream bandwidth) for G.992.3 (ADSL2) and G.992.5 (ADSL2+) Note: Annex M performance is not optimal over Annex A SKUs. G.994.1 ITU G.hs Handshake Protocol Reach-extended ADSL2 (G.922.3) Annex L for increased performance on loop lengths greater than 16,000 feet from central office T1.413 ANSI ADSL DMT issue 2 DSL Forum TR-067 and TR-100 performance compliant Inpulse Noise Protection (INP) with Extended Framing Parameters Downstream Power Back Off (DPBO) Fixed Firmware solution for General deployments. No ability to upgrade the Firmware on the 860VAE models (applicable to all non-Wifi models)

Производитель

Cisco

Характеристики

Approvals and compliance: Emissions:47 CFR Part 15: 2006, CISPR22: 2005, EN300386: V1.3.3: 2005, EN55022: 2006, EN61000-3-2: 2000 [Inc amd 1 and 2], EN61000-3-3: 1995 [+ amd 1: 2001], ICES-003 Issue 4: 2004, KN 22: 2005, VCCI: V-3/2006.04 Immunity:CISPR24: 1997 [+ amd 1 and 2], EN55024: 1998 [+ amd 1 and 2], EN61000: 4-3, 4-6, AS/NZS 3548, CFR 47 Part 15 Class B, EN55022 Class B
Cisco IOS Software Image: C860vae2-advseck9-mz
CON/AUX port: A single dual-purpose port that provides direct connection to a console or external modem for management or backup access point
Console or auxiliary port: RJ-45
Default Feature Set: Advanced Security
DRAM: 512MB
Embedded management features: NetFlow, IP service-level agreement (IP SLA), Web Services Management Agent
First Cisco IOS Software Release: 15.6(3)M
Flash Memory: 56 MB
Form-factor: 1 RU
Increased performance: Performance that allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, and video services
LAN interfaces: 1 GE + 4-port 10-/100-Mbps managed switch
Managed switch with GE and FE LAN ports: Connection of multiple devices within a teleworker home or a small office, with the ability to designate a port as the network edge, VLANs that allow for secure segmentation of network resources
Model: Cisco 866VAE-K9
Multimode DSL (VDSL2 and ADSL2 and 2+): Broadcom chipset, Dying gasp (Note: Dying Gasp is not assured on Annex M), IEEE 802.1q VLAN tagging VDSL2: ITU G.993.2 (VDSL2), 997 and 998 band plans, VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a, U0 band support (25–276 kHz), Ethernet PTM mode only based on IEEE 802.3ah 64/65 octet encapsulation, DELT diagnostics mode ADSL2/2+: ADSL over basic telephone service with Annex A and ISDN Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+), ADSL2+ over basic telephone service Annex M (for extended upstream bandwidth) for G.992.3 (ADSL2) and G.992.5 (ADSL2+) Note: Annex M performance is not optimal over Annex A SKUs. G.994.1 ITU G.hs Handshake Protocol, Reach-extended ADSL2 (G.922.3) Annex L for increased performance on loop lengths greater than 16,000 feet from central office, T1.413 ANSI ADSL DMT issue 2, DSL Forum TR-067 and TR-100 performance compliant, Inpulse Noise Protection (INP) with Extended Framing Parameters, Downstream Power Back Off (DPBO), Fixed Firmware solution for General deployments. No ability to upgrade the Firmware on the 860VAE models (applicable to all non-Wifi models)
Nonoperating altitude: 0 to 15,000 ft (0 to 4570m)
Nonoperating humidity: 5 to 95% relative humidity (noncondensing)
Nonoperating temperature: -20 to 65°C
Operating altitude: 0 to 10,000 ft (0 to 3000m)
Operating humidity: 10 to 85% relative humidity (noncondensing)
Operating temperature: At sea level: 0 to 40°C, Up 10,000 ft: 0 to 25°C, Derating 2.7°F/10,000 ft (1.5°C/1000 ft)
Performance with services: 10 Mbps
Physical dimensions (H x W x D): 4.45 x 24.1 x 22.9 cm
Power: AC input voltage: 100 to 240 VAC, Frequency: 50 to 60 Hz, Maximum output power: 60W, Output voltages: 12 VDC
QoS features: LLQ, WFQ, Class-Based WFQ (CBWFQ), Policy-Based Routing (PBR), Class-Based QoS MIB, Class of service (CoS)-to-differentiated services code point (DSCP) mapping, Network-Based Application Recognition (NBAR), DiffServ
Real-time clock: A built-in real-time clock that maintains an accurate date and time for applications that require an accurate time stamp, such as logging and digital certificates
Routing and switching: Border Gateway Protocol (BGP), MAC Filtering, Port Security, IPv4 VRF-Lite (Support for 4 VRFs)
Security and quality of service (QoS) with secure routers: IPsec and Easy VPN with 10 tunnels, BGP, MAC filtering and port security, QoS features that include LLQ and WFQ, NBAR and DiffServ
Security features: Ten IPsec tunnels, Easy VPN/IPsec VPN, FlexVPN including Site-Site VPN on 860VAE-W and C860VAE* models, Firewall, Cloud Web Security (Scansafe) Connector
State-of-the-art xDSL: State-of-the-art xDSL features as per the latest ADSL2+/VDSL2 standards, Improved interoperability vs. various DSL access multiplexers (DSLAMs) deployed at worldwide service providers
USB: One USB 2.0, USB port can be used for: USB flash memory 128 MB (MEMUSB-128FT), 256 MB (MEMUSB-256FT), and 1 GB (MEMUSB 1024FT), Cisco IOS Software boot from USB Note: USB 2.0 port cannot be used for connecting external devices or as a console
WAN interfaces: 1 GE ADSL2+ basic telephone service/ISDN VDSL2 over ISDN
Weight: 2.5 kg
Wireless LAN: 802.11n 2.4 GHz FCC- or ETSI-compliant WiFi, Cisco IOS® Software command-line interface (CLI) or web-based configuration with Admin/Guest role-based access
Производитель: Cisco
