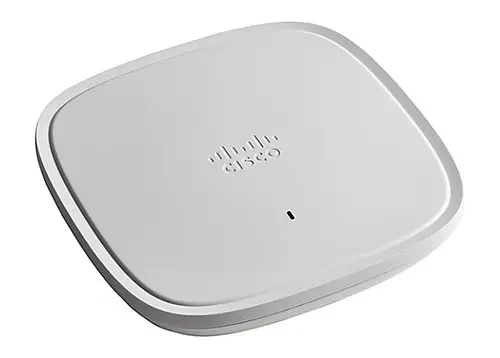

Точка доступа Cisco Catalyst, 802.11ax, встроенные антенны C9117AXI-E
Производитель: Cisco
Артикул: C9117AXI-E
Срок поставки: по запросу
Цена по запросу
Уточните условия поставки у менеджера.
Описание
Точка доступа Cisco Catalyst 9117AX с поддержкой Wi-Fi 6, встроенные антенны, 8x8:8 MIMO, E Domain.
| Software | Cisco Unified Wireless Network Software Release 8.9 or laterCisco IOS ® XE Software Release 16.11 or later |
| Supported wireless LAN controllers | Cisco Catalyst 9800 Series Wireless ControllersCisco 3500, 5520, and 8540 Series Wireless Controllers, and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | 8x8 MIMO with four spatial streams for 5-GHz band4x4 MIMO with four spatial streams for 2.4-GHz bandMaximal Ratio Combining (MRC)20- and 40-MHz channelsPHY data rates up to 600 Mbps (40 MHz with 5 GHz)Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)Cyclic Shift Diversity (CSD) support |
| 802.11ac | 8x8 downlink MU-MIMO with eight spatial streamsMRC802.11ac beamforming20-, 40-, 80, and 160-MHz channelsPHY data rates up to 3.5 Gbps at 5 GHzPacket aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)CSD support |
| 802.11ax | 8x8 MIMO with eight spatial streams for 5-GHz band4x4 MIMO with four spatial streams for 2.4-GHz bandDownlink OFDMATWTMRC802.11ax beamforming20-, 40-, 80, and 160-MHz channelsPHY data rates up to 5 Gbps at 5 GHzPacket aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)CSD support |
| Integrated antenna | 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth5 GHz, peak gain 6 dBi, internal antenna, omnidirectional in azimuth |
| Interfaces | 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bzManagement console port (RJ-45)USB 2.0 with up to 3.75W (enabled via future software) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting bracket and mounting features): 8.70 x 8.70 x 1.94 in. (22 x 22 x 4.93 cm)Access point (without mounting bracket): 8.70 x 8.70 x 2.19 in. (22 x 22 x 5.56 cm) |
| Weight | 3.02 lb (1.4 kg) |
| Input power requirements | 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®)Cisco power injector, AIR-PWRINJ6=802.3af PoECisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 2.5 Gbps, in addition, the USB port will be off. |
| Environmental | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)Nonoperating (storage) altitude test: 25?C, 15,000 ft.Operating temperature: 32° to 122°F (0° to 50°C)Operating humidity: 10% to 90% (noncondensing)Operating altitude test: 40?C, 9843 ft. |
| System memory | 2048 MB DRAM1024 MB flash |
| DFS | 802.11 dynamic frequency selection (DFS) |
| Warranty | Limited lifetime hardware warranty |
| Available transmit power settings | 2.4 GHz23 dBm (200 mW)20 dBm (100 mW)17 dBm (50 mW)14 dBm (25 mW)11 dBm (12.5 mW)8 dBm (6.25 mW)5 dBm (3.13 mW)2 dBm (1.56 mW)-1 dBm (0.78 mW)-4 dBm (0.4 mW)-6 dBm (0.25 mW)5 GHz26 dBm (400 mW)23 dBm (200 mW)20 dBm (100 mW)17 dBm (50 mW)14 dBm (25 mW)11 dBm (12.5 mW)8 dBm (6.25 mW)5 dBm (3.13 mW)2 dBm (1.56 mW)-1 dBm (0.78 mW)-4 dBm (0.4 mW) |
| Frequency band and 20-MHz operating channels | E (E regulatory domain):2.412 to 2.472 GHz, 13 channels 5.180 to 5.320 GHz, 8 channels 5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz) |
| Производитель | Cisco |
Характеристики
- 802.11ac
- 8x8 downlink MU-MIMO with eight spatial streamsMRC802.11ac beamforming20-, 40-, 80, and 160-MHz channelsPHY data rates up to 3.5 Gbps at 5 GHzPacket aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)CSD support
- 802.11ax
- 8x8 MIMO with eight spatial streams for 5-GHz band4x4 MIMO with four spatial streams for 2.4-GHz bandDownlink OFDMATWTMRC802.11ax beamforming20-, 40-, 80, and 160-MHz channelsPHY data rates up to 5 Gbps at 5 GHzPacket aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)CSD support
- 802.11n version 2.0 (and related) capabilities
- 8x8 MIMO with four spatial streams for 5-GHz band4x4 MIMO with four spatial streams for 2.4-GHz bandMaximal Ratio Combining (MRC)20- and 40-MHz channelsPHY data rates up to 600 Mbps (40 MHz with 5 GHz)Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)Cyclic Shift Diversity (CSD) support
- Available transmit power settings
- 2.4 GHz23 dBm (200 mW)20 dBm (100 mW)17 dBm (50 mW)14 dBm (25 mW)11 dBm (12.5 mW)8 dBm (6.25 mW)5 dBm (3.13 mW)2 dBm (1.56 mW)-1 dBm (0.78 mW)-4 dBm (0.4 mW)-6 dBm (0.25 mW)5 GHz26 dBm (400 mW)23 dBm (200 mW)20 dBm (100 mW)17 dBm (50 mW)14 dBm (25 mW)11 dBm (12.5 mW)8 dBm (6.25 mW)5 dBm (3.13 mW)2 dBm (1.56 mW)-1 dBm (0.78 mW)-4 dBm (0.4 mW)
- DFS
- 802.11 dynamic frequency selection (DFS)
- Dimensions (W x L x H)
- Access point (without mounting bracket and mounting features): 8.70 x 8.70 x 1.94 in. (22 x 22 x 4.93 cm)Access point (without mounting bracket): 8.70 x 8.70 x 2.19 in. (22 x 22 x 5.56 cm)
- Environmental
- Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)Nonoperating (storage) altitude test: 25?C, 15,000 ft.Operating temperature: 32° to 122°F (0° to 50°C)Operating humidity: 10% to 90% (noncondensing)Operating altitude test: 40?C, 9843 ft
- Frequency band and 20-MHz operating channels
- E (E regulatory domain):2.412 to 2.472 GHz, 13 channels 5.180 to 5.320 GHz, 8 channels 5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz)
- Indicators
- Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
- Input power requirements
- 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®)Cisco power injector, AIR-PWRINJ6=802.3af PoECisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 2.5 Gbps, in addition, the USB port will be off
- Integrated antenna
- 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth5 GHz, peak gain 6 dBi, internal antenna, omnidirectional in azimuth
- Interfaces
- 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bzManagement console port (RJ-45)USB 2.0 with up to 3.75W (enabled via future software)
- Software
- Cisco Unified Wireless Network Software Release 8.9 or laterCisco IOS ® XE Software Release 16.11 or later
- Supported wireless LAN controllers
- Cisco Catalyst 9800 Series Wireless ControllersCisco 3500, 5520, and 8540 Series Wireless Controllers, and Cisco Virtual Wireless Controller
- System memory
- 2048 MB DRAM1024 MB flash
- Warranty
- Limited lifetime hardware warranty
- Weight
- 3.02 lb (1.4 kg)
- Производитель
- Cisco
- Антенны
- 2 внутренние
- Блок питания в комплекте
- Нет
- Гарантия
- 1 год Cisco Limited Warranty
- Объем ОЗУ
- 2 Гб
- Память FLASH
- 1 Гб
- Порты консольные
- RJ-45
- Протоколы WIFI
- 802.11a/b/g/n/ac/ax
- Протоколы аутентификации WI-FI
- WPA, WPA2
- Протоколы шифрования WI-FI
- AES 256 (EAP)
- Режим управления точкой WIFI
- CAPWAP контроллер
- Серия
- Cisco Catalyst 9100
- Технология MIMO
- 8х8 MIMO
- Тип антенн
- Встроенные антенны
- Тип питания
- PoE
- Тип установки
- Настенное/потолочное
