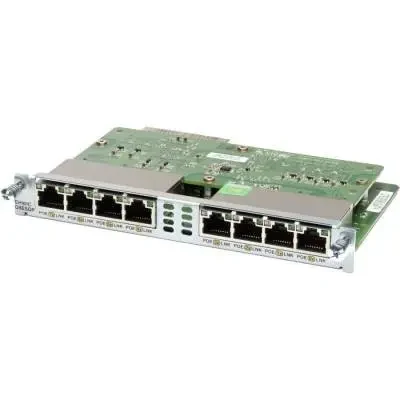

Интерфейсная карта Cisco EHWIC-D-8ESG-P=
Производитель: Cisco
Артикул: EHWIC-D-8ESG-P=
Срок поставки: по запросу
Цена по запросу
Уточните условия поставки у менеджера.
Описание
Интерфейсный модуль EHWIC, 8 портов 10/100/1000BaseT c PoE, для маршрутизаторов 1900, 2900, 3900 серий. Приобретается отдельно, как запасная часть. АКТУАЛЬНАЯ ЗАМЕНА: Модуль Cisco NIM-ES2-8-P
| General | |
|---|---|
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Plug-in module ( EHWIC ) |
| Interfaces | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) |
| Power Over Ethernet (PoE) | PoE |
| Routing Protocol | OSPF, HSRP, VRRP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, CLI |
| Encryption Algorithm | SSL |
| Authentication Method | Extensible Authentication Protocol (EAP) |
| Features | Auto-sensing per device, power over Ethernet (PoE), VPN support, auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Quality of Service (QoS), Jumbo Frames support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1x |
| Status Indicators | Port status |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T - RJ-45 - PoE |
| Dimensions & Weight | |
| Approximate Width | 7.4 in |
| Approximate Depth | 4.8 in |
| Approximate Height | 0.8 in |
| Approximate Weight | 6.9 oz |
| Environmental Parameters | |
| Min Operating Temperature | 32 F |
| Max Operating Temperature | 104 F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For | Cisco 1921, 1921 4-pair G.SHDSL bundle, 1921 ADSL2+ Annex M Bundle, 1921 ADSL2+ Bundle, 1921 ISR with EHWIC-VA-DSL-A bundle, 1921 SEC T1 Bundle, 1921 T1 Bundle, 1921 with Multimode EHWIC for VDSL/ADSL2+ Annex M, 1941, 1941 Mobile Wireless, 1941 Secure WAAS Bundle, 1941 Security, 1941 VPN ISM Module HSEC Bundle, 1941 WAAS Bundle, 2901, 2901 Hardware Only Bundle, 2901 Secure WAAS Bundle, 2901 Terminal Server Bundle, 2901 Voice Security and CUBE Bundle, 2901 VPN ISM Module HSEC Bundle, 2901 WAAS Bundle, 2911, 2911 Application Experience, 2911 Hardware Only Bundle, 2911 PSRE Bundle, 2911 Secure WAAS Bundle, 2911 UCSE Bundle, 2911 Voice Security and CUBE Bundle, 2911 VPN ISM Module HSEC Bundle, 2911 WAAS Bundle, 2921, 2921 PSRE Bundle, 2921 Secure WAAS Bundle, 2921 UCSE Bundle, 2921 Voice Security and CUBE Bundle, 2921 VPN ISM Module HSEC Bundle, 2921 WAAS Bundle, 2951, 2951 HSEC Bundle, 2951 PSRE Bundle, 2951 Secure WAAS Bundle, 2951 SRE Bundle, 2951 UCSE Bundle, 2951 Voice Security and CUBE Bundle, 2951 VPN ISM Module HSEC Bundle, 2951 WAAS Bundle, 3925, 3925 Application Experience, 3925 ES24 Unified Computing System Express Bundle, 3925 Generation 2 STM-1 Bundle, 3925 PSRE Bundle, 3925 UCSE Bundle, 3925 Voice Security and CUBE Bundle, 3925 VPN ISM Module HSEC Bundle, 3925 WAAS Bundle, 3925 WAAS Express Bundle, 3925 WAAS Express Security Bundle, 3925 WAAS Secure Bundle, 3925E, 3925E Application Experience, 3925E Generation 2 STM-1 Bundle, 3925E Security Bundle, 3925E SRE Bundle, 3925E Voice Security and CUBE Bundle, 3945, 3945 Application Experience, 3945 ES24 Unified Computing System Express Bundle, 3945 Generation 2 STM-1 Bundle, 3945 PSRE Bundle, 3945 Secure WAAS Bundle, 3945 UCSE Bundle, 3945 Voice Security and CUBE Bundle, 3945 VPN ISM Module HSEC Bundle, 3945 WAAS Express Bundle, 3945 WAAS Express Security Bundle, 3945E, 3945E Generation 2 STM-1 Bundle, 3945E SRE Bundle, 3945E Voice Security and CUBE Bundle |
| Производитель | Cisco |
| EOS | 22.02.2019 |
Характеристики
- Approximate Depth
- 4.8 in
- Approximate Height
- 0.8 in
- Approximate Weight
- 6.9 oz
- Approximate Width
- 7.4 in
- Authentication Method
- Extensible Authentication Protocol (EAP)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1x
- Designed For
- Cisco 1921, 1921 4-pair G.SHDSL bundle, 1921 ADSL2+ Annex M Bundle, 1921 ADSL2+ Bundle, 1921 ISR with EHWIC-VA-DSL-A bundle, 1921 SEC T1 Bundle, 1921 T1 Bundle, 1921 with Multimode EHWIC for VDSL/ADSL2+ Annex M, 1941, 1941 Mobile Wireless, 1941 Secure WAAS Bundle, 1941 Security, 1941 VPN ISM Module HSEC Bundle, 1941 WAAS Bundle, 2901, 2901 Hardware Only Bundle, 2901 Secure WAAS Bundle, 2901 Terminal Server Bundle, 2901 Voice Security and CUBE Bundle, 2901 VPN ISM Module HSEC Bundle, 2901 WAAS Bundle, 2911, 2911 Application Experience, 2911 Hardware Only Bundle, 2911 PSRE Bundle, 2911 Secure WAAS Bundle, 2911 UCSE Bundle, 2911 Voice Security and CUBE Bundle, 2911 VPN ISM Module HSEC Bundle, 2911 WAAS Bundle, 2921, 2921 PSRE Bundle, 2921 Secure WAAS Bundle, 2921 UCSE Bundle, 2921 Voice Security and CUBE Bundle, 2921 VPN ISM Module HSEC Bundle, 2921 WAAS Bundle, 2951, 2951 HSEC Bundle, 2951 PSRE Bundle, 2951 Secure WAAS Bundle, 2951 SRE Bundle, 2951 UCSE Bundle, 2951 Voice Security and CUBE Bundle, 2951 VPN ISM Module HSEC Bundle, 2951 WAAS Bundle, 3925, 3925 Application Experience, 3925 ES24 Unified Computing System Express Bundle, 3925 Generation 2 STM-1 Bundle, 3925 PSRE Bundle, 3925 UCSE Bundle, 3925 Voice Security and CUBE Bundle, 3925 VPN ISM Module HSEC Bundle, 3925 WAAS Bundle, 3925 WAAS Express Bundle, 3925 WAAS Express Security Bundle, 3925 WAAS Secure Bundle, 3925E, 3925E Application Experience, 3925E Generation 2 STM-1 Bundle, 3925E Security Bundle, 3925E SRE Bundle, 3925E Voice Security and CUBE Bundle, 3945, 3945 Application Experience, 3945 ES24 Unified Computing System Express Bundle, 3945 Generation 2 STM-1 Bundle, 3945 PSRE Bundle, 3945 Secure WAAS Bundle, 3945 UCSE Bundle, 3945 Voice Security and CUBE Bundle, 3945 VPN ISM Module HSEC Bundle, 3945 WAAS Express Bundle, 3945 WAAS Express Security Bundle, 3945E, 3945E Generation 2 STM-1 Bundle, 3945E SRE Bundle, 3945E Voice Security and CUBE Bundle
- Device Type
- Switch - 8 ports - managed
- Enclosure Type
- Plug-in module ( EHWIC )
- Encryption Algorithm
- SSL
- EOS
- 22.02.2019
- Features
- Auto-sensing per device, power over Ethernet (PoE), VPN support, auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Quality of Service (QoS), Jumbo Frames support
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Interfaces
- 8 x 1000Base-T - RJ-45 - PoE
- Max Operating Temperature
- 104 F
- Min Operating Temperature
- 32 F
- Ports
- 8 x 10/100/1000 (PoE)
- Power Over Ethernet (PoE)
- PoE
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, CLI
- Routing Protocol
- OSPF, HSRP, VRRP
- Status Indicators
- Port status
- Производитель
- Cisco
Спецификации
Подробную спецификацию предоставим по запросу. Укажите необходимые интерфейсы, производительность и условия эксплуатации.
Загрузки
Документы для скачивания пока не добавлены. Запросите инструкцию или технический паспорт у менеджера.
