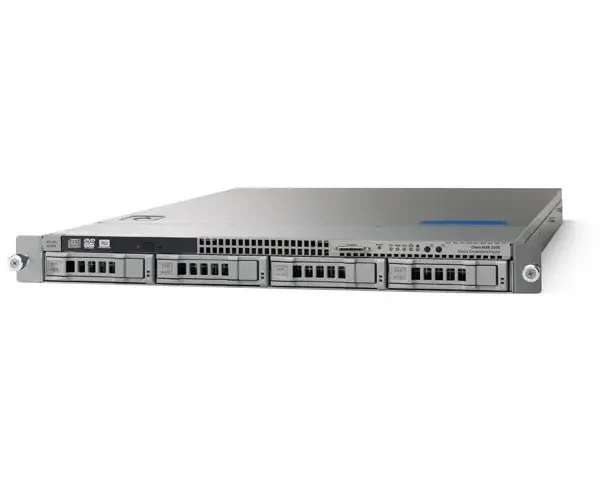

Медиасервер Cisco MXE-3500-V3-EDU-K9
Производитель: Cisco
Артикул: MXE-3500-V3-EDU-K9
Срок поставки: по запросу
Цена по запросу
Уточните условия поставки у менеджера.
Описание
MXE3500 Bundle V3 (Server+BaseSW+Graphics) Valid for EDU
| Supported input formats |
|
| Supported output formats |
|
| Preprocessing and media preparation |
|
| Workflow automation | Job submission
|
| System features |
|
| Operating Ranges | |
|---|---|
| Temperature | 50 to 95°F (10 to 35°C) |
| Relative humidity | 10 to 90% relative humidity (RH), 82.4°F (28°C) maximum wet bulb temperature, noncondensing |
| Altitude | 10,000 ft (3000m), this value may be limited by the type and number of options installed, maximum allowable altitude change rate is 1500 ft/min (457m/min) |
| Shock | 2 G’s |
| Vibration | Random vibration at 00075 G?/Hz, 10 to 300 Hz, (0.15 G’s nominal) |
| Acoustic noise | 40 dBA |
| Nonoperating Ranges | |
| Temperature | -40 to 158°F (-40 to 70°C) |
| Relative humidity | 5 to 95% RH, 101.7°F (38.7°C) maximum wet bulb temperature, noncondensing |
| Altitude | 30,000 ft (9000m) maximum allowable altitude change rate: 1500 ft/min (457m/min) |
| Shock | 15 G’s |
| Vibration | Random vibration at 005 G?/Hz, 10 to 500 Hz, (0.5 G’s nominal) |
| Acoustic noise | 40 dBA |
| Power Input (per power supply) | |
| Range line voltage | 90 to 264 VAC |
| Normal line voltage | 110 to 240 VAC |
| Current | 6A (110V), 3A (220V) |
| Frequency | 47 to 63 Hz |
| Range line voltage | 90 to 264 VAC |
| Normal line voltage | 110 to 240 VAC |
| Output (per power supply) | |
| Steady state | 400W (at 100 VAC and 200 VAC) |
| Maximum peak | 400W (at 100 VAC and 200 VAC) |
| Maximum heat dissipation | 1836 BTU/hr (at 100 VAC), 1706 BTU/hr (at 200 VAC) |
| Physical Specification | |
| Form factor | 1 rack unit (1RU) — Rack-mount |
| Dimensions (H x W x D) | 4.32 cm x 44.80 cm x 68.19 cm |
| Weight | 15.20 kg |
| Interfaces | |
| Ethernet | Dual 10/100/1000 |
| USB | 4, total |
| Regulatory and Standards Compliance | |
| Safety | UL 60950-1, 1st Edition, 2006-07-07 Part1, CSA C22.2 No.60950-1-03, 1st Edition, 2006-07 Part1 |
| Electromagnetic Compliance (EMC) | CISPR 22, EN55022, EN55024, FCC CFR 47, Pt 15, ICES-003, CNS13438, and GB9254 |
| Производитель | Cisco |
Характеристики
- 1 rack unit (1RU) — Rack-mount
- Dimensions (H x W x D)
- 10 to 90% relative humidity (RH), 82.4°F (28°C) maximum wet bulb temperature, noncondensing
- Altitude
- 10,000 ft (3000m), this value may be limited by the type and number of options installed, maximum allowable altitude change rate is 1500 ft/min (457m/min)
- Shock
- 110 to 240 VAC
- Output (per power supply)
- 15.20 kg
- Interfaces
- 2 G’s
- Vibration
- 4.32 cm x 44.80 cm x 68.19 cm
- Weight
- 40 dBA
- Nonoperating Ranges
- 47 to 63 Hz
- Range line voltage
- 50 to 95°F (10 to 35°C)
- Relative humidity
- 6A (110V), 3A (220V)
- Frequency
- 90 to 264 VAC
- Normal line voltage
- Acoustic noise
- 40 dBA
- Altitude
- 30,000 ft (9000m) maximum allowable altitude change rate: 1500 ft/min (457m/min)
- CISPR 22, EN55022, EN55024, FCC CFR 47, Pt 15, ICES-003, CNS13438, and GB9254
- Производитель
- Ethernet
- Dual 10/100/1000
- Maximum heat dissipation
- 1836 BTU/hr (at 100 VAC), 1706 BTU/hr (at 200 VAC)
- Maximum peak
- 400W (at 100 VAC and 200 VAC)
- Operating Ranges
- Temperature
- Physical Specification
- Form factor
- Power Input (per power supply)
- Range line voltage
- Preprocessing and media preparation
- Video: Blur, bumpers and trailers, color space conversion, contrast enhancement, cropping, de-interlacing and interlacing, fade in, and fade out, In and out trimming: Field frame control, gamma correction, hue rotation, inverse telecine, noise reduction, saturation, support for 16?9 and other aspect ratios, add and remove letter boxing and curtaining, temporal smoothing, video frame rate conversion and resizing with antialias filtering watermarking, automated, and thumbnail extraction
- Random vibration at 00075 G?/Hz, 10 to 300 Hz, (0.15 G’s nominal)
- Acoustic noise
- Regulatory and Standards Compliance
- Safety
- Relative humidity
- 5 to 95% RH, 101.7°F (38.7°C) maximum wet bulb temperature, noncondensing
- Shock
- 15 G’s
- Steady state
- 400W (at 100 VAC and 200 VAC)
- Supported input formats
- Editing systems, Avid, Final Cut Pro, Adobe Premiere AVI, DVD VoB files, QuickTime: All supported formats, MPEG-1: Elementary Stream, System Stream, and Layer II, Audio MPEG-2: Elementary, Program, and Transport Stream, and PCM Audio, Layer II Audio, and AC3 Audio, MPEG-4: Third-Generation Partnership Project (3GPP) and 3GPP2, AVI: All supported formats, DirectShow: All supported formats, WAV, Windows Media, VC-1, H.264
- Supported output formats
- Windows Media: V7, V8, V9, MPEG-4V3, and ISO-MPEG4-V1, Windows Media Audio: V2, V7, V8, ACELP.net, RealVideo10, RealVideo 9, RealVideo 8, RealAudio 10, and RealAudio 8, QuickTime: All supported codecs, MPEG-4, On2 Flash 8, MP3, WAV
- System features
- Auto job restart, File distribution, Status notification
- Temperature
- -40 to 158°F (-40 to 70°C)
- UL 60950-1, 1st Edition, 2006-07-07 Part1, CSA C22.2 No.60950-1-03, 1st Edition, 2006-07 Part1
- Electromagnetic Compliance (EMC)
- USB
- 4, total
- Vibration
- Random vibration at 005 G?/Hz, 10 to 500 Hz, (0.5 G’s nominal)
- Workflow automation
- Job submissionProfile building: An automated system that allows you to quickly apply customized processing settings to new jobs, Monitoring: A summary screen that provides insight into the status of queued jobs, Automated Folder Attendant : A program that facilitates integration between external systems and the Cisco MXE 3000 platform
