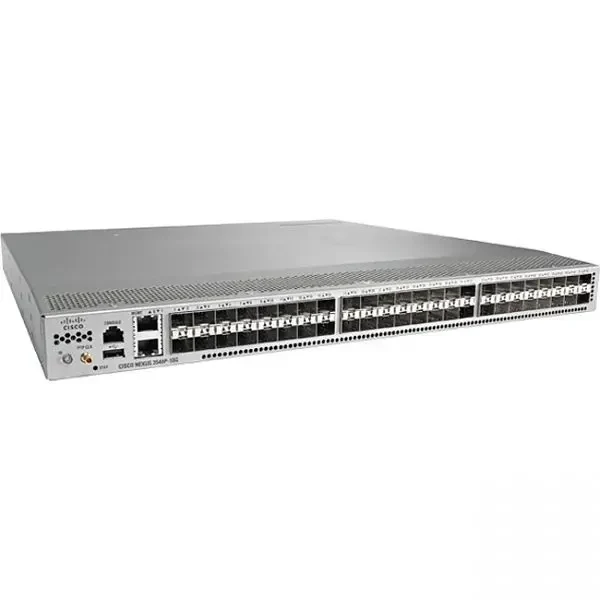

Коммутатор Cisco N3K-C3548P-FA-L3A
Производитель: Cisco
Артикул: N3K-C3548P-FA-L3A
Срок поставки: по запросу
Цена по запросу
Уточните условия поставки у менеджера.
Описание
Nexus 3548+L3+Algo, Fwd Airflow (port side exhaust), AC
| General | |
|---|---|
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity : 960 Gbps Forwarding performance : 720 Mpps |
| Capacity | Virtual interfaces (VLANs) : 4096 ACL entries : 4096 IPv4 routes : 4000 Host table entries (IPv4) : 8000 Rapid Spanning Tree Protocol instances : 512 Multiple Spanning Tree Protocol instances : 64 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 |
| Routing Protocol | OSPF, RIP-2, BGP, EIGRP, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, PIM-SSM, MSDP |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2) |
| Features | NAT support, VLAN support, Syslog support, Broadcast Storm Control, Multicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Jumbo Frames support, Virtual Route Forwarding-Lite (VRF-Lite), back to front airflow, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, DHCP relay, Link Aggregation Control Protocol (LACP), Hot Standby Router Protocol (HSRP) support |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Flash Memory | 2 GB |
| Expansion / Connectivity | |
| Interfaces | 1 x console - RJ-45 - management 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management 48 x SFP+ 1 x USB |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 400 Watt |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1 Second Edition, RoHS, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition |
| Software / System Requirements | |
| Software Included | Cisco NX-OS Layer 3 Enterprise Services |
| Dimensions & Weight | |
| Approximate Width | 17.3 in |
| Approximate Depth | 18.4 in |
| Approximate Height | 1.7 in |
| Approximate Weight | 17.4 lbs |
| Manufacturer Warranty | |
| Service & Support | 1 year warranty |
| Service & Support Details | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature | 32 |
| Max Operating Temperature | 104 |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | 40 |
| Max Storage Temperature | 158 |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Производитель | Cisco |
Характеристики
- Approximate Depth
- 18.4 in
- Approximate Height
- 1.7 in
- Approximate Weight
- 17.4 lbs
- Approximate Width
- 17.3 in
- Authentication Method
- RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
- Capacity
- Virtual interfaces (VLANs) : 4096 ACL entries : 4096 IPv4 routes : 4000 Host table entries (IPv4) : 8000 Rapid Spanning Tree Protocol instances : 512 Multiple Spanning Tree Protocol instances : 64
- Compliant Standards
- CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1 Second Edition, RoHS, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition
- Device Type
- Switch - 48 ports - L3 - managed
- Enclosure Type
- Rack-mountable - 1U
- Encryption Algorithm
- AES
- Features
- NAT support, VLAN support, Syslog support, Broadcast Storm Control, Multicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Jumbo Frames support, Virtual Route Forwarding-Lite (VRF-Lite), back to front airflow, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, DHCP relay, Link Aggregation Control Protocol (LACP), Hot Standby Router Protocol (HSRP) support
- Flash Memory
- 2 GB
- Humidity Range Operating
- 10 - 85% (non-condensing)
- Humidity Range Storage
- 5 - 95% (non-condensing)
- Installed Qty
- 2 (installed) / 2 (max)
- Interfaces
- 1 x console - RJ-45 - management 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management 48 x SFP+ 1 x USB
- Jumbo Frame Support
- 9216
- MAC Address Table Size
- 8K entries
- Max Operating Temperature
- 104
- Max Storage Temperature
- 158
- Min Operating Temperature
- 32
- Min Storage Temperature
- 40
- Performance
- Switching capacity : 960 Gbps Forwarding performance : 720 Mpps
- Ports
- 48 x 1 Gigabit / 10 Gigabit SFP+
- Power Device
- Internal power supply - hot-plug
- Power Provided
- 400 Watt
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Remote Management Protocol
- SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, SSH-2, CLI
- Routing Protocol
- OSPF, RIP-2, BGP, EIGRP, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, PIM-SSM, MSDP
- Service & Support
- 1 year warranty
- Service & Support Details
- Limited warranty - advance parts replacement - 1 year - response time: 10 days
- Software Included
- Cisco NX-OS Layer 3 Enterprise Services
- Voltage Required
- AC 120/230 V ( 50/60 Hz )
- Производитель
- Cisco
Спецификации
Подробную спецификацию предоставим по запросу. Укажите необходимые интерфейсы, производительность и условия эксплуатации.
