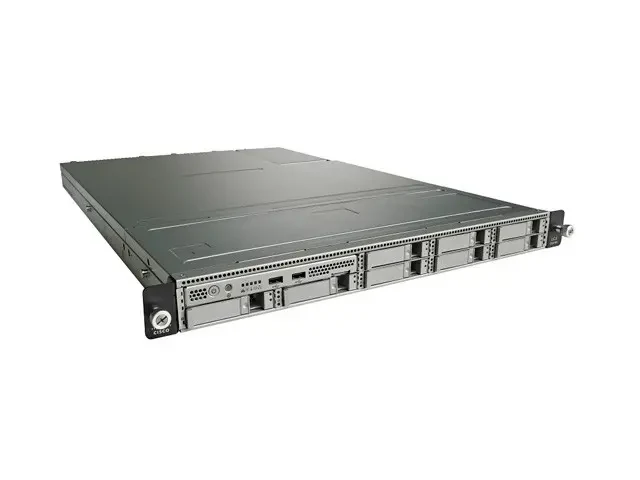

Сервер Cisco UCS C22 M3 UCSC-C22-M3S-CH2
Производитель: Cisco
Артикул: UCSC-C22-M3S-CH2
Срок поставки: по запросу
Цена по запросу
Уточните условия поставки у менеджера.
Описание
Disti:C22M3SFF,w/oCPU,HSnk,Mem,HD,PCIe,PSU,w/Rls,Blnk
| Технические характеристики | |
|---|---|
| Chassis | Single rack unit (1RU) chassis |
| CPU | One or two Intel® Xeon E5-2400 series processor family CPUs |
| Chipset | Intel C600 chipset |
| Memory | 12 DIMM slots |
| NIC | Embedded dual-port Intel I350 PCIe-based Gigabit Ethernet controller |
| Expansion slots | Two riser cards with one PCIe card slot in each riser? Riser 1 (controlled by CPU 1)
|
| Internal storage devices | ? Up to four 3.5-inch SAS+SATA hot-swappable hard disk drives (HDDs)? One connector on the motherboard that can accommodate a USB 2.0 drive. You can order an 8 GB drive for this connector and use it as a hypervisor or license dongle. The 8 GB USB drive comes blank. Or, you can order a 16 GB drive that comes with preloaded drivers and utilities. |
| Video | The Emulex Pilot 3 Integrated Baseboard Management Controller provides video:? Matrox G200e video controller? Integrated 2D graphics core with hardware acceleration? Supports all display resolutions up to 1920 x 1200 x 16 bpp resolution at 60 Hz? 24-bit color depth for all resolutions less than 1600x1200 ? 256 MB video memory |
| Питание | |
| AC input voltage | 90 to 264 VAC self-ranging 100 to 120 VAC nominal 200 to 240 VAC nominal |
| AC input frequency | Range: 47 to 63 Hz (single phase, 50 to 60 Hz nominal) |
| Maximum AC input current | 6 A maximum at 100 VAC 3 A maximum at 208 VAC |
| Maximum AC inrush current | 9 A peak @ 35° C, 208 VAC |
| Maximum output power for the power supply | 450 W |
| Power supply output voltage | Main power: 12 VDC Standby power: 12 VDC |
| Power supply efficiency | CSCI Platinum |
| окружающей среды | |
| Temperature operating | 41 to 95° F (5 to 35° C) Maximum temperature is to be derated by 1 degree C for every 305 m (1000 ft.) of altitude above sea level |
| Temperature nonoperating | –40 to 149°F (–40 to 65°C) |
| Humidity (RH) nonoperating, non-condensing | 10 to 90% |
| Altitude operating | 0 to 3,000 m (0 to 10,000 ft.) |
| Altitude nonoperating | 0 to 12,192 m (0 to 40,000 ft.) |
| Sound Power level, Measure A-weighted per ISO7779 LWAd (Bels) Operation at 73°F (23°C) | 5.9 |
| Sound Pressure level, Measure A-weighted per ISO7779 LpAm (dBA)Operation at 73°F (23°C) | 46 |
| Физические характеристики | |
| Габариты (ВxШxГ) | 43.2 mm x 430 mm x 660.4 mm |
| Вес | 10.65 kg (пустой) 14.3 kg (4 HDDs, 2 CPUs, 12 DIMMs, 1 power supply) |
| Сертификаты соответствия | |
| Regulatory Compliance | Products should comply with CE Markings per directives 2004/108/EC and 2006/95/EC |
| Safety | UL 60950-1 Second EditionCAN/CSA-C22.2 No. 60950-1 Second EditionEN 60950-1 Second EditionIEC 60950-1 Second EditionAS/NZS 60950-1 GB4943 2001 |
| EMC - Emissions | 47CFR Part 15 (CFR 47) Class A AS/NZS CISPR22 Class A CISPR22 Class AEN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2EN61000-3-3KN22 Class A CNS13438 Class A |
| EMC - Immunity | EN55024CISPR24EN300386KN24 |
| Производитель | Cisco |
| EOS | 01.05.2015 |
